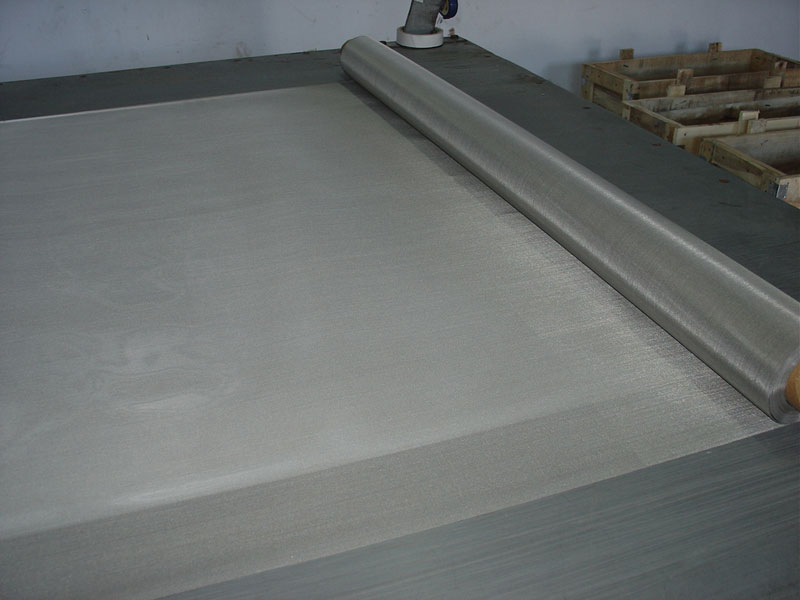

120 100 25 5 micron 304 316 stainless steel wire mesh /wire cloth for filters,rust resistance stainless steel wire mesh
-
Stainless steel wire mesh is widely used in industries and constructions to sieve grain powder,
liquid and gas filter, for other purposes like industries of mining, oil, chemicals, food
pharmaceuticals, machine making, scientific research, aviation, etc.
1.Material :SS302 304 304L 316 316L 321
2. weave : Plain, Twilled, Dutch
1.Plain Weave Mesh
2.Twill Weave Mesh
3.Plain Dutch Weave Mesh
4.Twill Dutch Weave Mesh
5.Reverse Dutch Weave Mesh
Stainless Steel Square Woven Wire Mesh Weaving Styles
Note:The weaving is determined according to our customers' specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.
5.Stainless Steel Square Woven Wire MeshCharacteristics
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.Square aperture,high flow through and relative high open area,as result less pressure drop during filtration.Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.
1. Stainless steel wire mesh Plain weave
| Mesh | Wire dameter(mm) | Opening(mm) | Materials(AISI) |
| 7x7 | 1.00 | 2.63 | 304 or 316 |
| 10x10 | 0.60 | 1.94 | 304 or 316 |
| 12x12 | 0.50 | 1.62 | 304 or 316 |
| 16x16 | 0.40 | 1.19 | 304 or 316 |
| 18x18 | 0.35 | 1.06 | 304 or 316 |
| 20x20 | 0.35 | 0.87 | 304 or 316 |
| 24x24 | 0.26 | 0.80 | 304 or 316 |
| 30x30 | 0.30 | 0.55 | 304 or 316 |
| 35x35 | 0.17 | 0.56 | 304 or 316 |
| 40x40 | 0.23 | 0.40 | 304 or 316 |
| 50x50 | 0.20 | 0.31 | 304 or 316 |
| 60x60 | 0.15 | 0.27 | 304 or 316 |
| 70x70 | 0.12 | 0.24 | 304 or 316 |
| 80x80 | 0.13 | 0.19 | 304 or 316 |
2. Stainless steel wire mesh and cloth Twill weave
| Mesh | Wire diameter(mm) | Opening(mm) | Material(AISI) |
| 250X250 | 0.040 | 0.063 | 316 |
| 300X300 | 0.040 | 0.044 | 316 |
| 325X325 | 0.035 | 0.043 | 316L |
| 350X350 | 0.030 | 0.033 | 316L |
| 400X400 | 0.030 | 0.033 | 316L |
| 450X450 | 0.028 | 0.028 | 316L |
| 500x500 | 0.025 | 0.026 | 316L |
3. Stainless steel wire mesh and cloth Dutch weave
| Mesh | Wire diameter(mm) | Material(AISI) |
| 12x64 | 0.58x0.40 | 304 or 316 |
| 24x110 | 0.36x0.25 | 304 or 316 |
| 14x88 | 0.50x0.33 | 304 or 316 |
| 30x150 | 0.23x0.18 | 304 or 316 |
| 40x200 | 0.18x0.13 | 304 or 316 |
| 50x250 | 0.14x0.11 | 304 or 316 |
| 80x700 | 0.10x0.08 | 304 or 316 |
| 165x800 | 0.071x0.040 | 304 or 316 |
| 165x1400 | 0.06x0.04 | 304 or 316 |
| 200x1800 | 0.05x0.032 | 304 or 316 |
| 825x2300 | 0.035x0.025 | 316L |
| 400x2800 | 0.030x0.020 | 316L |
Application
Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc
About us
Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
